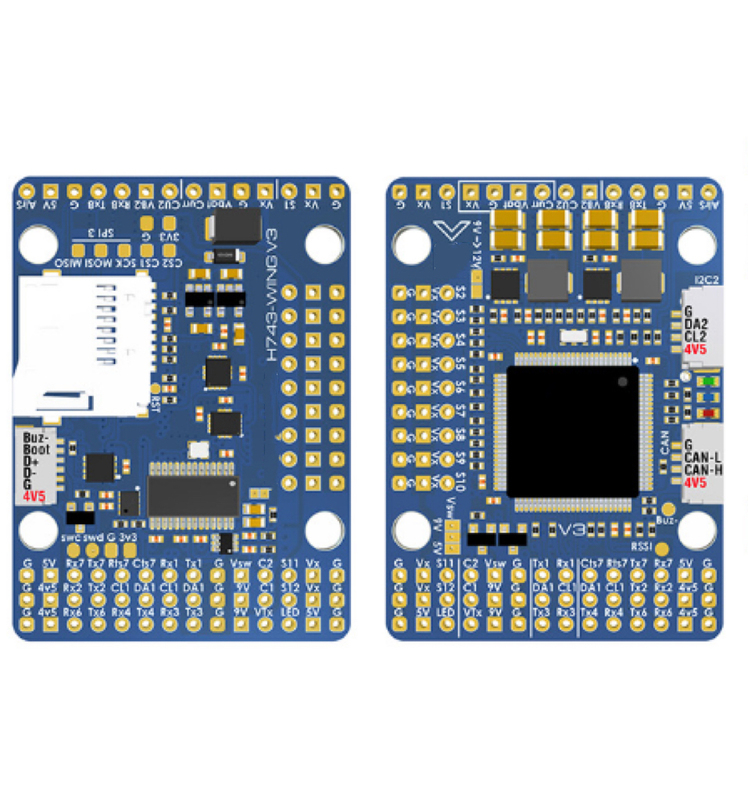

Matek H743 WING V3 STM32H743VIT6 Dual Camera INAV Flight Controller for Flight Controllers Autopilots Flying Tech Airplane Gyros & Stabilizers Flying Tech Matek H743 WLITE Flight Controller HobbyRC UK Flight Controllers MATEKSYS Mch iu Khin Matek Wing H743 WLITE Flight Controller Mood FPV Vit Nam. FC Specifications MCU: STM32H743VIH6, 480MHz , 512KB RAM, 2MB Flash IMU: ICM42688 P Baro: DPS310 (I2C2) OSD: AT7456E Blackbox: MicroSD card slot (SDIO) 7x Uarts (1,2,3,4,6,7,8) with built in inversion. 13x PWM outputs(12+LED) 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2) 3x LEDs for FC STATUS (Blue, Red) and 3. 3V indicator(Red) 2x I2C 1x CAN USB Beep Extender with Type C(USB2. 0) Dual Camera Inputs switch 9V(12V) for VTX power switch High precision Current Sense, 220A range ADC VB2 voltage divider: 1K: 20K ADC AirSpeed voltage divider: 20K: 20K FC Firmware INAV: MATEKH743 ArduPilot: MATEKH743 PDB Input voltage range: 6. 8~30V (2~6S LiPo) 1x ESC power pads Battery Voltage divider 1K: 20K (Scale 2100 in INAV, BATT_VOLT_MULT 21. 0 in ArduPilot) Current Senor: 220A, 3. 3V ADC (Scale 150 in INAV, 66. 7 A V in ArduPilot) Sense resistor: 90A continuous, 220A peak BEC 5V output Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed Continuous current: 2 Amps, Max. 3A BEC 9V 12V output Designed for Video Transmitter, Camera, Gimbal ect. Continuous current: 2 Amps, Max. 3A 12V option with Jumper pad for stable 9V 12V output, input voltage should > output voltage +1V BEC Vx output Designed for Servos Voltage adjustable, 5V Default, 6V or 7. 2V via jumper Continuous current: 8 Amps, Max. 10A for stable Vx output, input voltage should > Vx voltage +1V BEC 3. 3V output Designed for Baro Compass module and external 3. 3V peripherals Linear Regulator Continuous current: 200mA Physical Mounting: 25 x 25mm, ?? 2mm Dimensions: 44 x 29 x 14. 5 mm Weight: 22g w USB buzzer adapter Layout Included 1x H743 WLITE 1x USB(Type C) Beep (Passive buzzer) Extender 1x 20cm JST SH 6P to JST SH 6P cable for USB extender. 2x 20cm JST GH 4P to JST GH 4P cable for CAN & I2C port 1x Rubycon ZLH 35V 470uF capacitor Dupont 2. 54 pins (Board is shipped unsoldered)
